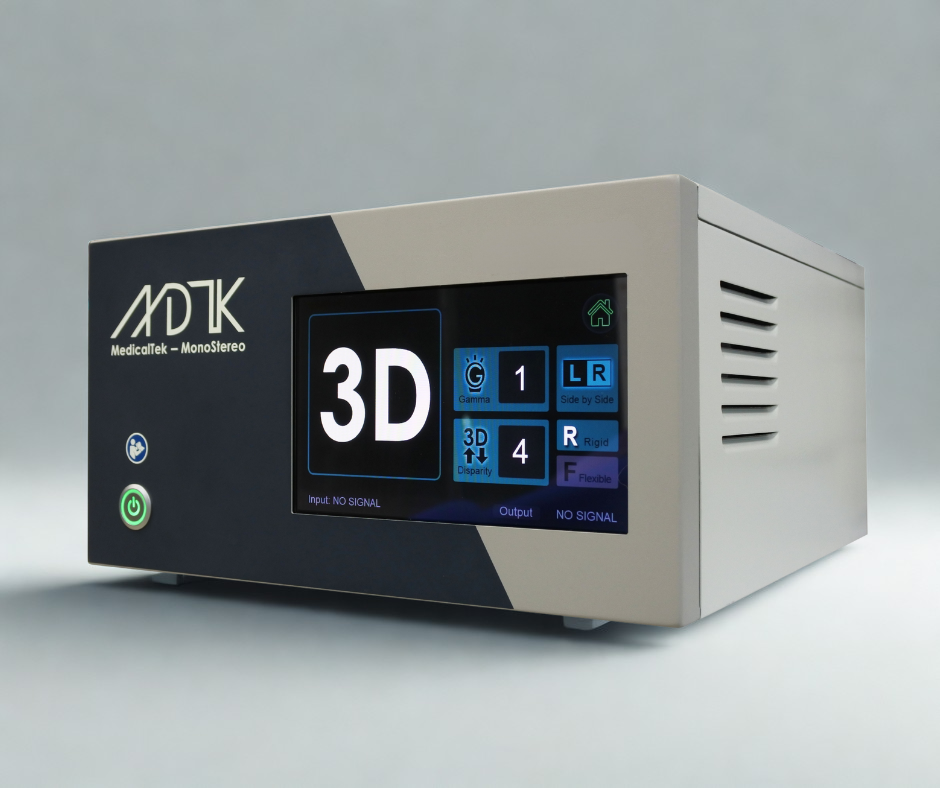

DARWIN 3D Endoscopic Visualization System

The DARWIN 3D Endoscopic Visualization System pioneers in endoscopic imaging, offering real-time 3D visualization based on 2D endoscopic images. Instead of investing in multiple 3D endoscopes, DARWIN enables a cost-effective upgrade by transforming existing 2D images into 3D. Elevate your clinic, hospital, operating room, and endoscopic facilities affordably with this innovative solution.

    This combination does not exist.

    ​


    DARWIN: Where 2D Meets Limitless 3D Possibilities. Keep Rotation and Zooming Functions Intact Across Rigid and Flexible Scopes, from All Angulated Optical Lenses to Different Diameters.


    3D solution provider of 0°, 30°, 45°, 70° endoscopes at 2.7mm, 4mm, 5mm, 10mm diameters.

    Product Design

    2D Endoscopy System

    STEP 01

    Connects with 2D endoscopy system

    INPUT

    DARWIN 3D Endoscopic Visualization System

    STEP 02

    Captures 2D image, analyzes and generates depth information, then outputs 3D images

    OUTPUT

    Real-time 3D Image

    STEP 03

    Display real-time stereoscopic images on a 3D monitor

    3D IMAGE



    Product Highlights

    01
    02
    03
    04
    05

    01

    Easy 2D/3D Mode Switch

    Transition between 2D and 3D modes with a single touch.

    02

    Gamma Adjustment

    Optimize the correlation between image contrast and brightness by adjusting the exponential relationship. Decreasing the gamma value enhances visibility in darker areas of the image.

    03

    3D Display Format

    Choose the format that is most compatible with your 3D monitor from Line-by-line (Interlaced), Side-by-side, or Top-and-Bottom.

    04

    Adjustable Human Factor

    Enjoy a comfortable 3D viewing experience by adjusting the 3D parameters to the preferred disparity level when discomfort or dizziness with 3D vision occurs, while maintaining accurate 3D images.

    05

    Tailored Algorithm for Rigid/Flexible Endoscope

    Select rigid or flexible mode for optimal 3D vision tailored to your scope and procedure.

    Applications

    ENT

    Otolaryngology

    Sinus Surgery, Myringoplasty, Tympanoplasty, Congenital Ossicular Anomaly


    GI

    Gastroenterology

    Colonoscopy, Gastroscopy, EMR, ESD, ERCP, ESG, POEM


    GS

    General Surgery

    Single-port Surgery, Pediatric Surgery


    GU

    Urology

    TURP, URSL, RIRS


    Specification

    Specification
    AC Input
    		 100-240V / 10-5A, 60/50HZ
    Dimensions (W x L x H)
    		 305 × 320 × 160 mm
    Weight
    		 Approx. 8 kg
    Input Terminal
    		 HDMI
    Output Terminal DP (Display Port)
    Input Resolution
    		 Up to 3840 × 2160 (1920 × 1080 recommended)
    Output Resolution
    		 1920 × 1080 @60fps
    3D Format Line-by-line (Interlaced), Side-by-side, Top-and-Bottom
    Touch Panel 7” Capacitive touch panel 800 × 480
    For more details, please refer to the Brochure.
    Download Brochure
